Oil & Gas

Our Project

Saudi Aramco, Qurayyah​

End-client

Saudi Aramco

Project

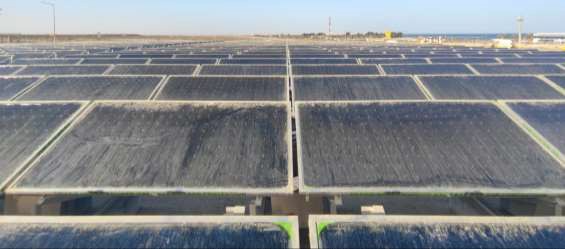

1,020 m2 solar field; 0.60 MWth

Location

Qurayyah Sea Water Plant, KSA

Operating Temperature

103 to 174ᣞC

Industry

Oil & Gas

Delivered Energy

864 MWhth/y (846 kWh/y/m2)

Application

Boiler feedwater pre-heating

Fuel Savings

115,200 l/y of diesel

TVP Role

Engineering and solar plant supply (construction contracted to a local qualified EPC)

CO2 Emissions Avoided

300 ton/y of CO2

Challenge

The largest oil company in the world, Saudi Aramco, set the priority to cut liquid fuels in its production, processing and utility sites, as part of the decarbonization of its core processes. Solar thermal is required to supply boiler feedwater pre-heating up to 174ᣞC even when covered by dust to cut the sensible heat demand from 3 different boilers.

Solution

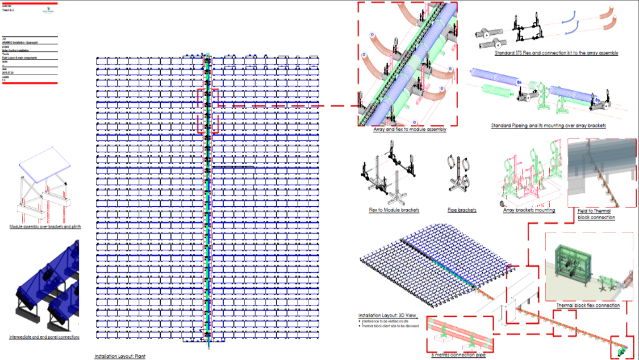

TVP integrates 3 separate water-to-water heat exchangers, controlled by same SCADA, delivering energy at required temperature without any panel cleaning (recording only 15% yearly energy losses from soiling effect)
